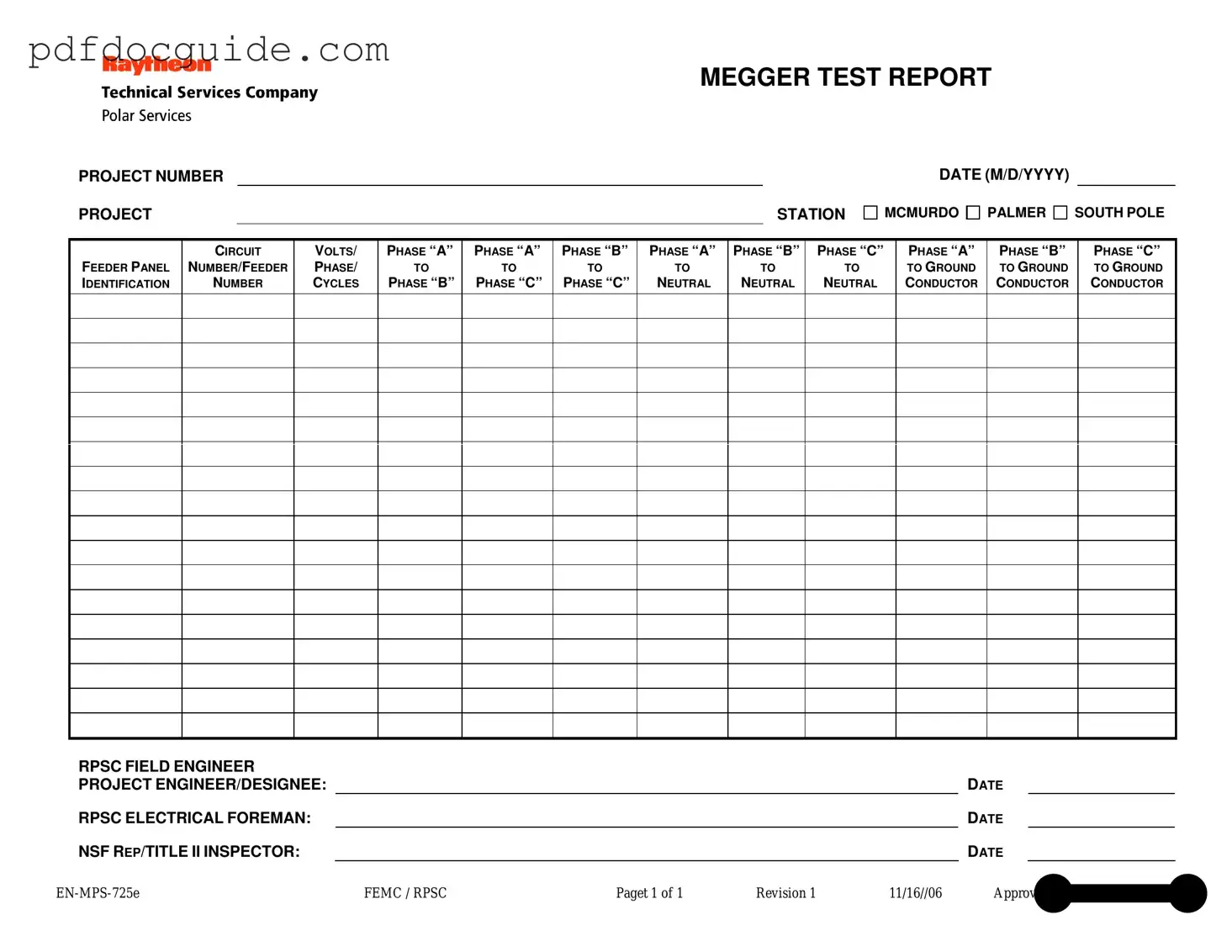

Megger Test Form

When filling out and using the Megger Test form, consider the following key takeaways to ensure accuracy and compliance:

• Project Identification: Always start by clearly entering the project number and station. This helps in tracking and referencing the test results later.
• Date Entry: Make sure to fill in the date in the correct format (M/D/YYYY). This is crucial for record-keeping and ensuring the test is within acceptable time frames.
• Panel and Circuit Details: Accurately identify the feeder panel and circuit numbers. This information is essential for understanding where the tests were conducted.
• Voltage and Phase Information: Record the voltage, phase, and cycles accurately. This data is vital for evaluating the electrical system's performance.
• Testing Phases: Measure and document the resistance between all specified phases and the neutral. This includes Phase “A” to Phase “B,” “A” to “C,” and “B” to “C,” as well as to neutral and ground.
• Signature Requirements: Ensure that all required personnel, including the RPSC field engineer and electrical foreman, sign and date the form. This adds credibility and accountability to the report.
• Review and Approval: Before finalizing, have the report reviewed and approved by the designated authority. This step is important for compliance with safety and regulatory standards.

By following these takeaways, you can ensure that the Megger Test form is filled out correctly and serves its purpose effectively.

When it comes to the Megger Test form, there are several misconceptions that can lead to confusion. Understanding the truth behind these myths can help ensure accurate testing and reporting. Here’s a list of common misconceptions:

1. The Megger Test is only for electrical engineers. Many professionals, including technicians and maintenance personnel, can perform the Megger Test. Training is essential, but it’s not limited to engineers.
2. Only high-voltage systems require Megger Testing. This test is valuable for both low and high-voltage systems. It helps identify insulation issues regardless of voltage levels.
3. The Megger Test can only be done once. Regular testing is recommended. Performing the test periodically helps monitor insulation integrity over time.
4. Results from the Megger Test are always definitive. While the test provides critical data, results should be interpreted in context. Other factors may influence the readings.
5. You don’t need to prepare the system before testing. Proper preparation is crucial. Disconnecting power and ensuring the system is safe can prevent accidents and ensure accurate results.
6. The Megger Test only measures insulation resistance. While insulation resistance is a primary focus, the test can also reveal other issues, such as leakage currents.
7. All Megger Test forms are the same. Forms can vary by project and organization. It’s essential to use the correct form that meets specific requirements.
8. Once the test is complete, no further action is needed. If results indicate problems, further investigation and corrective actions are necessary to ensure safety and compliance.
9. Megger Testing is outdated and no longer relevant. On the contrary, it remains a vital tool in electrical maintenance and safety practices today.

By clearing up these misconceptions, you can approach the Megger Test with greater confidence and understanding. Always ensure you are using the correct procedures and forms for your specific needs.

1. Inaccurate Project Information: Failing to enter the correct project number or station can lead to confusion and misfiled reports. Always double-check this information for accuracy.

2. Missing Dates: Forgetting to fill in the date can create issues with record-keeping. Ensure the date is in the correct format (M/D/YYYY) to avoid any misunderstandings.

3. Incorrect Circuit Identification: Using the wrong circuit or feeder number can result in incorrect test results being associated with the wrong equipment. Verify these numbers before submission.

4. Omitting Voltage and Phase Information: Not providing the voltage, phase, or cycles can lead to incomplete data. Each test should include this information to ensure comprehensive reporting.

5. Inconsistent Testing Values: Reporting inconsistent values for phase-to-phase or phase-to-ground tests can raise red flags. It’s essential to ensure that all values are logical and consistent with one another.

6. Not Including Signatures: Failing to obtain the necessary signatures from the field engineer, project engineer, and other inspectors can invalidate the report. Ensure all required parties sign off before submission.

7. Neglecting to Review the Form: Skipping a final review can result in overlooked errors. Always take a moment to review the entire form before submission to catch any mistakes.

When filling out the Megger Test form, it is important to ensure accuracy and clarity. Here are ten things to keep in mind:

• Do double-check the project number for accuracy.
• Do clearly identify the project station.
• Do enter the date in the correct format (M/D/YYYY).
• Do fill in the feeder panel identification correctly.
• Do ensure all voltage, phase, and cycle information is complete.
• Don't leave any fields blank; every section must be filled out.
• Don't use abbreviations that may confuse the reader.
• Don't forget to sign and date the form where required.
• Don't use illegible handwriting; clarity is crucial.
• Don't submit the form without a final review for errors.

The Megger Test Report shares similarities with an Electrical Inspection Report. Both documents serve to assess the integrity and safety of electrical systems. An Electrical Inspection Report typically includes details about the components inspected, the conditions found, and any recommendations for repairs or improvements. Like the Megger Test Report, it records specific measurements and observations, ensuring that the electrical installation meets safety standards and regulations.

Another document akin to the Megger Test Report is the Circuit Testing Report. This report focuses on the performance of electrical circuits, detailing the results of various tests conducted on those circuits. It includes measurements such as voltage, current, and resistance, similar to the Megger Test Report. Both documents aim to provide a clear understanding of circuit functionality and safety, making them essential for troubleshooting and maintenance.

The Commissioning Report is also comparable to the Megger Test Report. This document is generated during the commissioning phase of electrical systems, documenting the tests performed to verify that all components operate as intended. Like the Megger Test Report, it includes specific test results and identifies any issues that need addressing before the system goes live. Both reports are crucial for ensuring that electrical systems are safe and reliable.

A Maintenance Test Report can be likened to the Megger Test Report as well. This report records the results of routine maintenance tests conducted on electrical equipment. It often includes information on insulation resistance, grounding, and overall equipment condition. Just as the Megger Test Report provides insights into insulation integrity, the Maintenance Test Report helps identify potential problems before they escalate, promoting proactive maintenance strategies.
