The LADBS NEC Standard Electrical Load Calculation form is a crucial document used to determine the electrical load requirements for residential and commercial buildings in Los Angeles. This form helps ensure that electrical systems are designed safely and efficiently, adhering to the National Electrical Code (NEC) standards. Understanding how to properly complete this form is essential for contractors, engineers, and property owners alike.
The LADBS NEC Standard Electrical Load Calculation form is an essential tool for ensuring that electrical systems meet safety and performance standards. This form assists in determining the appropriate electrical load for various types of buildings and installations, which is critical for maintaining compliance with local codes. It covers major aspects such as residential, commercial, and industrial load calculations, allowing users to accurately assess the electrical demands of their projects. The form requires detailed input on various factors, including lighting, heating, and appliance loads, ensuring a comprehensive evaluation. By following the guidelines provided, users can effectively calculate the total load and make informed decisions about electrical service requirements. Timely completion of this form is crucial for project approvals and inspections, underscoring its importance in the planning and execution of electrical installations.
What is the LADBS NEC Standard Electrical Load Calculation form?
The LADBS NEC Standard Electrical Load Calculation form is a document used to determine the electrical load requirements for a building or structure. This form helps ensure compliance with the National Electrical Code (NEC) and local regulations. By accurately calculating the load, it assists in the proper sizing of electrical service and equipment, promoting safety and efficiency in electrical installations.
Who needs to fill out this form?
This form is typically required by electrical contractors, engineers, and architects involved in the design and installation of electrical systems. It is essential for anyone seeking a permit for electrical work in Los Angeles, as it provides the necessary information for the Department of Building and Safety (DBS) to evaluate the proposed electrical system.
What information is required to complete the form?
To complete the form, individuals must provide details such as the type of occupancy, the total square footage of the building, and the specific electrical loads for various appliances and systems. This includes lighting, heating, air conditioning, and any specialized equipment. Accurate data is crucial for a reliable load calculation.
How is the electrical load calculated?
The electrical load is calculated by summing the individual loads of all devices and systems that will be connected to the electrical service. The form provides guidelines for determining the load for different types of equipment and allows for adjustments based on the nature of the occupancy. It is important to follow the NEC guidelines to ensure that the calculations are accurate and compliant.
What happens if the form is not submitted?
If the LADBS NEC Standard Electrical Load Calculation form is not submitted, the permit application for electrical work may be delayed or denied. Compliance with local regulations is critical for the safety and functionality of electrical systems. Without this form, the DBS cannot assess whether the proposed electrical service meets the required standards.
Can the form be submitted electronically?
Yes, the LADBS allows for electronic submission of the NEC Standard Electrical Load Calculation form. This facilitates a more efficient review process and helps streamline the permitting procedure. Ensure that all required fields are completed accurately before submitting the form online.
Is there a fee associated with submitting the form?
There may be fees associated with the permit application process, which can include the submission of the LADBS NEC Standard Electrical Load Calculation form. These fees vary based on the scope of work and local regulations. It is advisable to check with the LADBS for the most current fee schedule before submitting the application.
Where can I find additional resources or assistance with the form?
Additional resources and assistance can be found on the LADBS website. They provide guidelines, FAQs, and contact information for further inquiries. If individuals require personalized assistance, they can reach out to the DBS directly or consult with a licensed electrical professional who is familiar with the permitting process.
When filling out the LADBS NEC Standard Electrical Load Calculation form, there are several important points to keep in mind. These takeaways will help ensure that the form is completed accurately and effectively.
By keeping these key points in mind, you can navigate the process of completing the LADBS NEC Standard Electrical Load Calculation form with confidence and clarity.
Understanding the LADBS NEC Standard Electrical Load Calculation form is crucial for compliance and safety. However, several misconceptions can lead to confusion. Here are four common misunderstandings:
Addressing these misconceptions can help ensure compliance and promote safety in electrical installations.

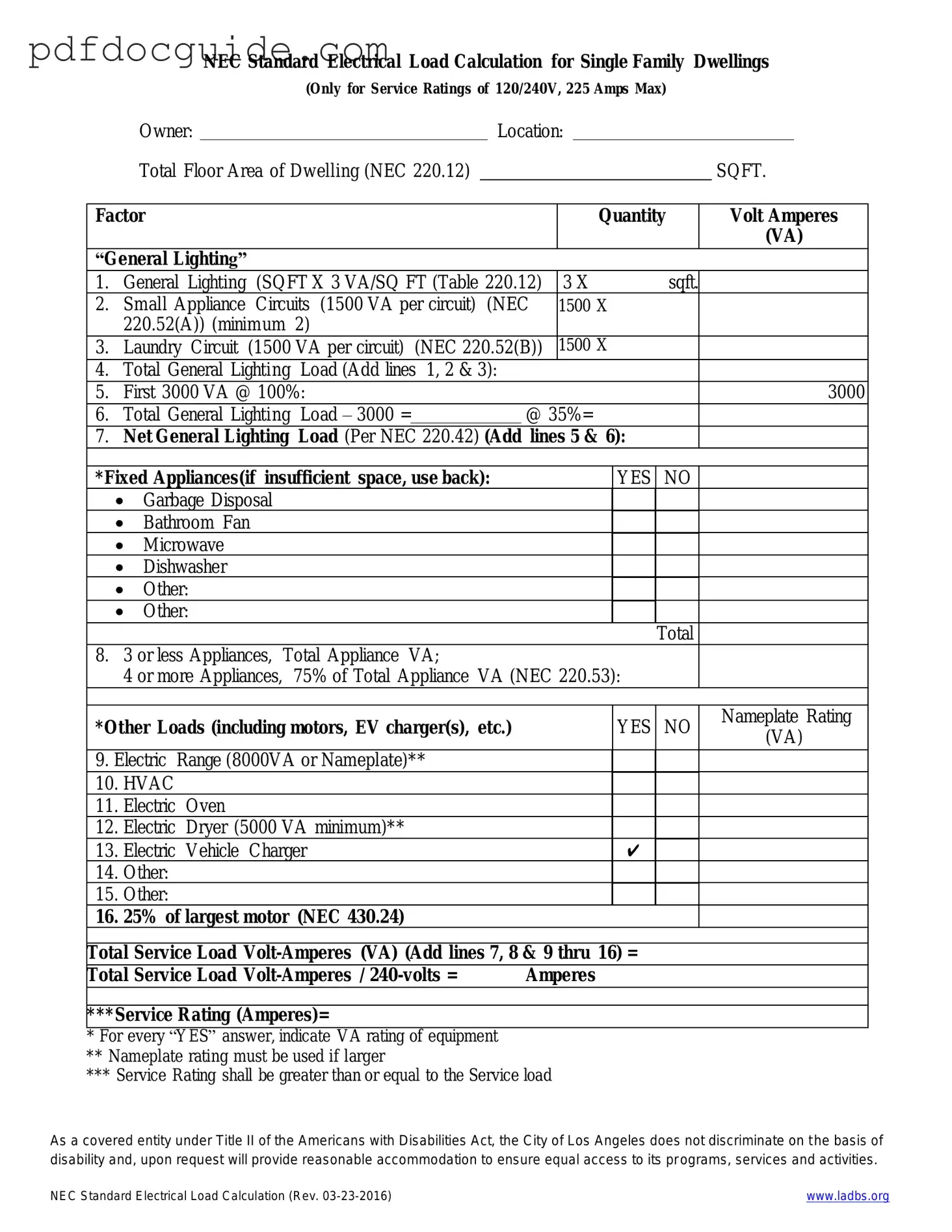

NEC Standard Electrical Load Calculation for Single Family Dwellings
(Only for Service Ratings of 120/240V, 225 Amps Max)
Owner:
Location:
Total Floor Area of Dwelling (NEC 220.12)
SQFT.
Factor
Quantity
Volt Amperes
(VA)
“General Lighting”
1.
General Lighting (SQFT X 3 VA/SQ FT (Table 220.12)
3 X
sqft.
2.
Small Appliance Circuits (1500 VA per circuit)
(NEC
1500 X
220.52(A)) (minimum 2)
3.
Laundry Circuit (1500 VA per circuit) (NEC 220.52(B))
4.
Total General Lighting Load (Add lines 1, 2 & 3):
5.
First 3000 VA @ 100%:
3000
6.
Total General Lighting Load – 3000 =
@ 35%=
7.
Net General Lighting Load (Per NEC 220.42) (Add lines 5 & 6):
*Fixed Appliances(if insufficient space, use back):
YES
NO
Garbage Disposal
Bathroom Fan
Microwave
Dishwasher
Other:
Total
8.
3 or less Appliances,
Total Appliance VA;
4 or more Appliances,
75% of Total Appliance VA (NEC 220.53):
*Other Loads (including motors, EV charger(s), etc.)
Nameplate Rating
9. Electric
Range (8000VA or Nameplate)**
10. HVAC
11.
Electric
Oven
12.
Dryer (5000 VA minimum)**
13.
Vehicle Charger
✔
14.
15.
16.
25% of largest motor (NEC 430.24)
Total Service Load Volt-Amperes (VA) (Add lines 7, 8 & 9 thru 16) =
Total Service Load Volt-Amperes / 240-volts =
Amperes
***Service Rating (Amperes)=
*For every “YES” answer, indicate VA rating of equipment
**Nameplate rating must be used if larger
***Service Rating shall be greater than or equal to the Service load
As a covered entity under Title II of the Americans with Disabilities Act, the City of Los Angeles does not discriminate on t he basis of disability and, upon request will provide reasonable accommodation to ensure equal access to its programs, services and activities.
NEC Standard Electrical Load Calculation (Rev. 03-23-2016)
www.ladbs.org
Hoa Proxy Form - Make sure your proxy is clear and unambiguous.
When managing loans and repayments, using a well-structured legal document is essential, and a Pennsylvania Promissory Note can be an effective solution. This document articulates the agreement clearly and ensures that both parties understand their obligations. For more details on how to utilize this important legal form, visit the resource on the Promissory Note to aid in your financial transactions.
Car Repair Estimate Template - Indicate if you'd like to receive a written estimate or just a verbal one.
How Can I Get My Pay Stubs - Information such as pay period start and end dates is included on the ADP Pay Stub.
Incomplete Information: Many individuals fail to provide all necessary details. Missing data can lead to delays in processing. Ensure every section is filled out completely.
Incorrect Load Calculations: Miscalculating the electrical load is a common error. Use the correct formulas and units to determine the total load accurately. Double-check your math to avoid mistakes.
Failure to Include All Appliances: Some people forget to list all appliances and devices. Every item that uses electricity should be included in the load calculation. This ensures compliance with safety standards.
Ignoring Local Codes: Each jurisdiction may have specific requirements. Not adhering to local codes can result in rejections. Familiarize yourself with the regulations applicable in your area.
Neglecting to Review the Form: Skipping the review process can lead to overlooked errors. Always take the time to read through the completed form before submission. This helps catch any mistakes that may have been made.
When filling out the LADBS NEC Standard Electrical Load Calculation form, it is important to follow certain guidelines to ensure accuracy and compliance. Here are four things to do and not do:
The LADBS NEC Standard Electrical Load Calculation form shares similarities with the National Electrical Code (NEC) guidelines. Both documents aim to ensure safety and compliance in electrical installations. The NEC provides a comprehensive framework for electrical systems, detailing requirements that must be met to protect people and property. Just like the LADBS form, the NEC emphasizes accurate load calculations to prevent overloading circuits and ensure proper system functioning.
Another document that resembles the LADBS form is the Electrical Load Calculation Worksheet often used by electrical engineers. This worksheet helps professionals determine the expected electrical load of a building or facility. Similar to the LADBS form, it requires detailed information about the types of appliances, lighting, and equipment that will be used. Both documents are crucial for ensuring that electrical systems are designed to handle the anticipated load safely.
The Utility Company Load Calculation form is also akin to the LADBS NEC form. Utility companies often require this document to assess the demand for electricity in a new construction project. Like the LADBS form, it includes calculations based on anticipated usage and helps in planning the necessary infrastructure. Both documents ensure that the electrical supply can meet the needs of the building without causing strain on the local grid.
The Residential Energy Consumption Report is another document that has a similar purpose. This report evaluates the energy usage of a home, focusing on various systems, including electrical. It shares a common goal with the LADBS form: to promote energy efficiency and safety. Both documents require detailed information about electrical appliances and their expected usage to provide accurate assessments.
The New York ATV Bill of Sale form serves as a legal document necessary for the private sale of an All-Terrain Vehicle (ATV) within the state. This form not only records the transaction between buyer and seller but also provides essential information for registration purposes. Understanding and properly filling out this form is crucial for both parties involved to ensure a smooth transfer of ownership. For more information, you can visit autobillofsaleform.com/atv-bill-of-sale-form/new-york-atv-bill-of-sale-form.
The Commercial Electrical Load Calculation form is closely related to the LADBS NEC form, particularly for businesses. This document assesses the electrical needs of commercial buildings, ensuring that the electrical systems can handle the load. Like the LADBS form, it includes various factors such as lighting, HVAC systems, and equipment usage, making it essential for proper planning and compliance.
The Electrical Service Load Calculation form, often used by contractors, is another document that parallels the LADBS form. This form focuses on determining the total electrical service required for a property. It shares the same emphasis on accurate load calculations to ensure safety and efficiency. Both forms help in designing systems that meet the specific needs of the property while adhering to local codes.
The Generator Load Calculation form is similar in purpose to the LADBS NEC form, particularly for those considering backup power solutions. This document helps users determine the load that a generator must support during an outage. Like the LADBS form, it requires detailed information about electrical devices and their usage, ensuring that the generator can handle the necessary load without issues.
Lastly, the Electrical Panel Load Calculation form is also comparable to the LADBS NEC form. This document assesses the load on an electrical panel to ensure it can safely distribute power to various circuits. It requires similar calculations and considerations, such as the total load and individual circuit loads. Both forms are essential tools for ensuring that electrical systems are designed and installed safely and effectively.
